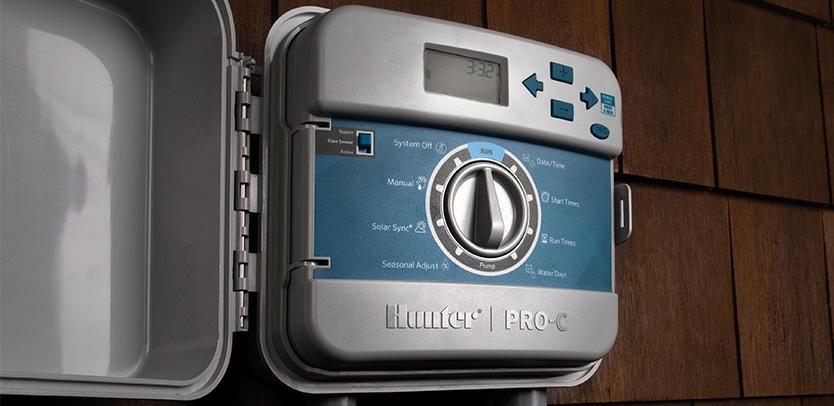

Pro-C Control Unit

The Pro-C control units from Hunter are the ideal, easy-to-use control units for automatic tennis court irrigation.

The 4-station basic unit, expandable up to 16 stations, offers irrigation times from 1 minute to 6 hours per station.

The device has a sensor connector and is compatible with a wide range of weather sensors. It is also wind, weatherproof and waterproof for use on outdoor tennis courts.

Properties

• Housing with lockable lid
• Compatible with Hunter Clik sensors and other spring sensors
• Manual start and advance with only one button for easy manual operation
• Independent programmes: 3
• Start times per programme: 4
• Max. running time of the stations: 6 hours
• Programmable rain delay: 1 to 7 days
• Automatic short circuit protection
• Internal transformer

Technical data

• Transformer input: 120 VAC
• Transformer output: (24VAC): 1A
• Station output: (24 VAC): 0.56 A
• Sensor inputs: 1
• Operating temperature: -18°C to 66°C
• Dimensions: 22.6 x 25.1 x 10.9 cm (h x l x d
