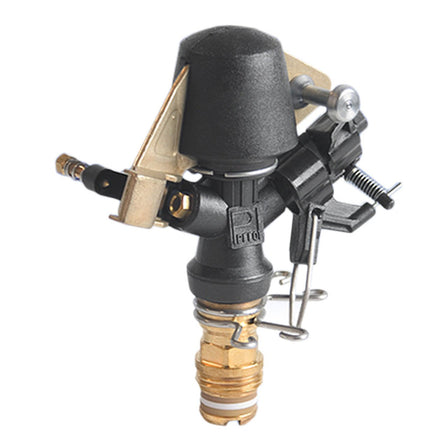

Perrot ZA 22 - Impact Sprinkler

Oscillating lever sprinkler for above-ground irrigation in proven Perrot quality.

Irrigation sprinkler with 22° jet rise, with jet baffle - to vary the water jet. With switchable tilting spring for optional use as a circular or pitch circle sprinkler

Required as 1/2 "sprinkler 6-point sprinkler to water the tennis court.

Technical data

Technische Daten

• Connection: 1/2 "AG
• Nozzle size: 4.5 mm
• Throwing distance: min. 10.5 m - max. 14.0 m
• Flow rate: 0.69 - 1.89 m3/h
• Operating pressure: 2.5 - 4.5 bar
