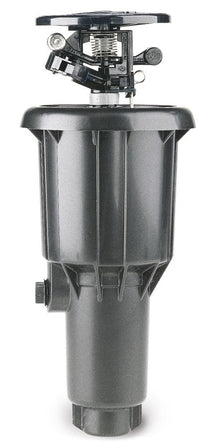

Maxi-Paw Pop-up Impact Sprinkler

Rain Bird rotor sprinkler that can handle low pressure and dirty water.

The optimum swing arm alternative.

Properties

• Tried and tested swing arm
• Riser height: 7.6 cm
• Colour coded interchangeable nozzles with bayonet lock
• 5 MPR nozzles, i.e. the flow rates of the different nozzle spray patterns are matched to each other and 2 nozzles with low jet rise.
• No need for tools to change nozzles
• rotor arm with 2 counterweights; slow redation ensures an excellent water-throwing range
• Works at low pressure and low flow
• A single model for full circle and pitch circle from 20° to 340°
• Swing lever with PJ™ system against lateral spraying
• Jet interference screw (SAFETY CATCH?)
• Wiper seal
• Turning mechanism for partial circle irrigation
• Combined connection option: bottom 1/2" (15/21) or 3/4" (20/27) IG, side 1/2" IG
• Maintenance from above possible

Technical data

• Throwing range: 6.7 to 13.7 m (Water Projection range?)
• Pressure: 1.7 to 4.1 bar
• Water consumption: 0.34 to 1.91 m3/h
• 2 lower connections: 1/2" and 3/4" IG
• 1 lateral connection: 1/2" IG
• Beam rise (height??):
• 23° for nozzle size 06, 07,08, 10 and 12
• 11° for nozzle size 07-LA and 10-LA
• MPR nozzles: 06 (red), 07 (black), 08 (blue), 10 (yellow), 12 (beige)
• Nozzles with low jet rise: 07-LA (black), 10-LA (yellow)
• Height of the casing: 23.6 cm
• Visible diameter: 12.7 cm
